Roger Charger SC 150-212V DC, Max 1,600W @ 110V / 2,000W @ 220V

Product image 1
1 / 8

Roger Charger SC 150-212V DC, Max 1,600W @ 110V / 2,000W @ 220V

  • Supports the most common voltages/adapters of newer generation Electric Unicycles, adjustable to 151.2V, 168V, 176V, and 210V.
  • See below for maximum amperage details, Wheel hardware limits may still apply.
  • Large digital display readout with: voltage, amperage, watts, temperature, time, Ah, & Wh data
  •  Dimensions: 8.2"L x 3.75"W x 1.8"H and 4lb weight.

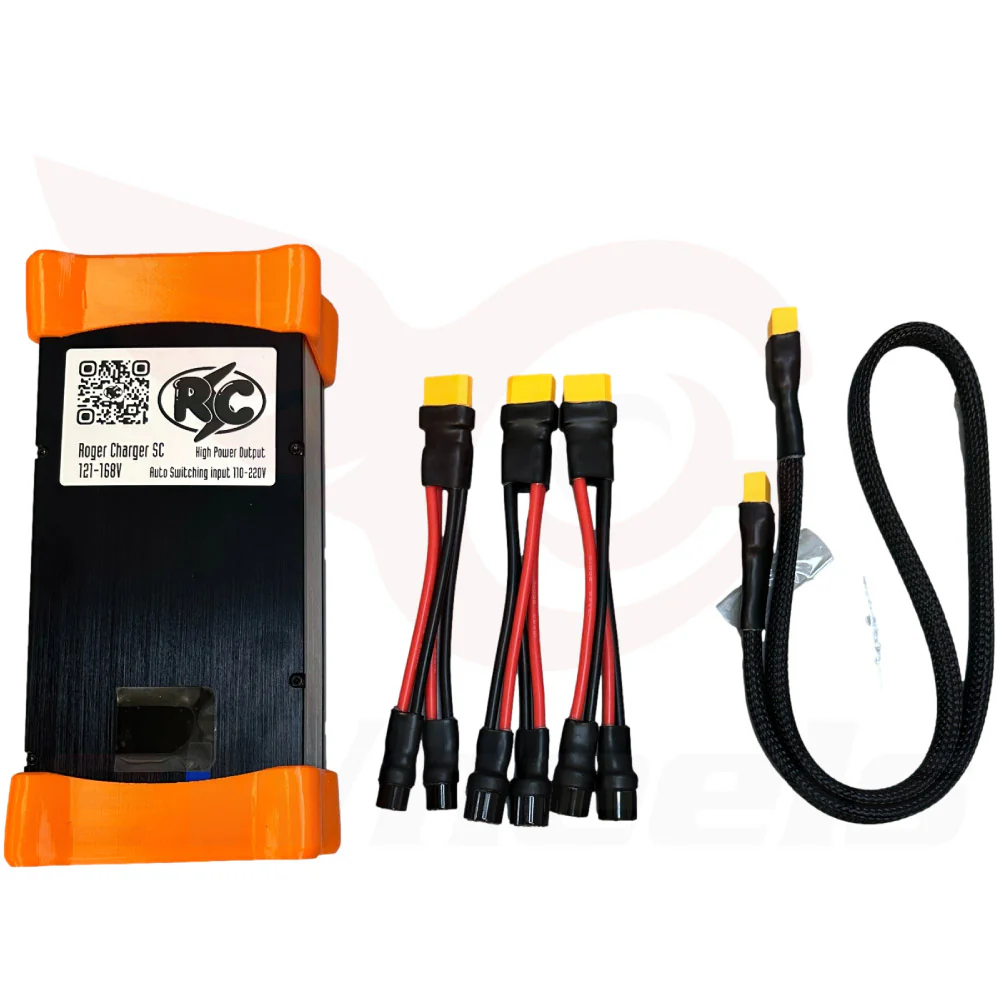

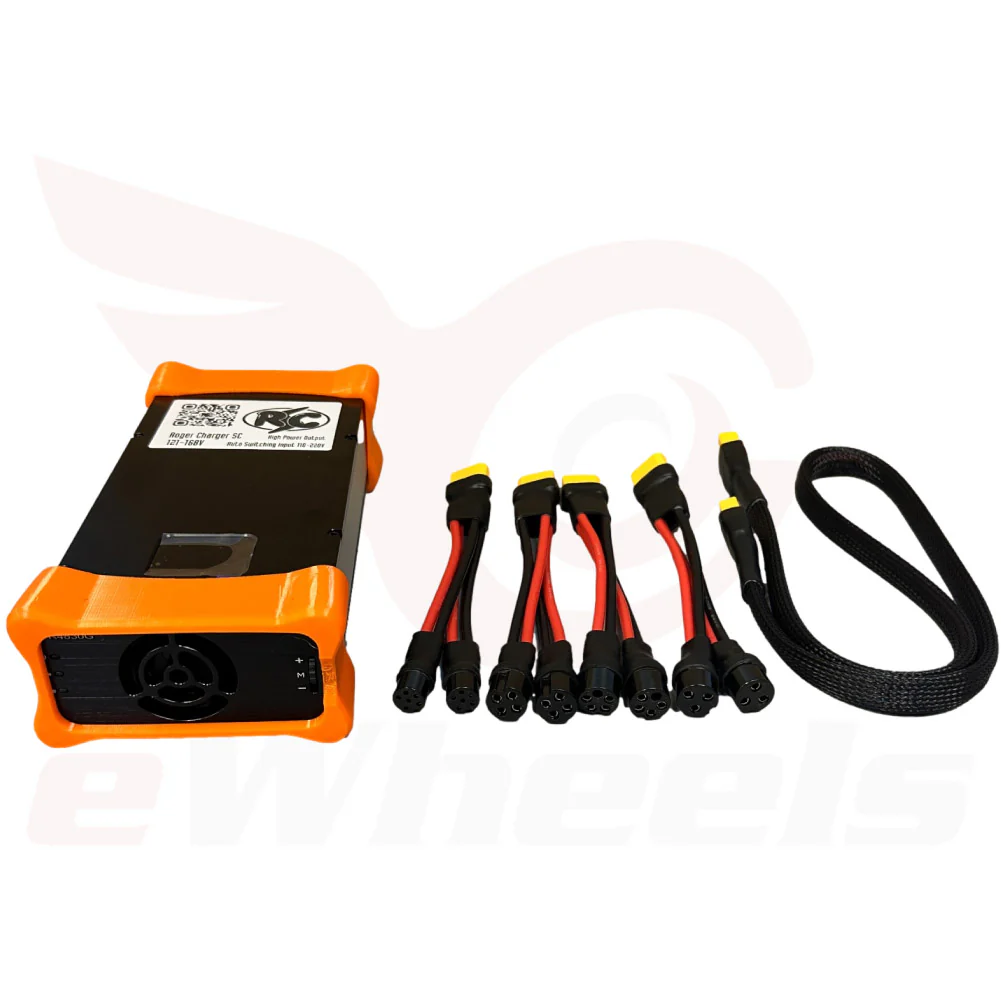

  • Single DC output wire, with the following adapters included:
    • 151V Y-splitter, GX20-5 dual port
    • 168V & 210V, single port each, on the same Y-junction. GX20-3 (168V), & GX20-2 (210V)





    • IMPORTANT 1: before connecting the charger to the Wheel, please check the charger's output voltage & ensure current limits do NOT exceed the rated outlet amperage (15A is typical on most 110V receptacles).
    • IMPORTANT 2: see the maximum current values possible from different AC input voltages below:



    110V AC Input, SC212: 1,600W power limit (assuming 15A outlet):



    • 151V: up to 10.5A
    • 168V: up to 9.5A
    • 176V: up to 9A
    • 210V: up to 7.5A



    220V AC Input, SC212: 2,000W power limit:



    • 151V: up to 13A
    • 168V: up to 12A
    • 176V: up to 11A
    • 210V: up to 9.5A
    $385.00
    Roger Charger SC 150-212V DC, Max 1,600W @ 110V / 2,000W @ 220V—
    $385.00

    Product Information

    Shipping & Returns

    Description

    • Supports the most common voltages/adapters of newer generation Electric Unicycles, adjustable to 151.2V, 168V, 176V, and 210V.
    • See below for maximum amperage details, Wheel hardware limits may still apply.
    • Large digital display readout with: voltage, amperage, watts, temperature, time, Ah, & Wh data
    •  Dimensions: 8.2"L x 3.75"W x 1.8"H and 4lb weight.
    • Single DC output wire, with the following adapters included:
      • 151V Y-splitter, GX20-5 dual port
      • 168V & 210V, single port each, on the same Y-junction. GX20-3 (168V), & GX20-2 (210V)





      • IMPORTANT 1: before connecting the charger to the Wheel, please check the charger's output voltage & ensure current limits do NOT exceed the rated outlet amperage (15A is typical on most 110V receptacles).
      • IMPORTANT 2: see the maximum current values possible from different AC input voltages below:



      110V AC Input, SC212: 1,600W power limit (assuming 15A outlet):



      • 151V: up to 10.5A
      • 168V: up to 9.5A
      • 176V: up to 9A
      • 210V: up to 7.5A



      220V AC Input, SC212: 2,000W power limit:



      • 151V: up to 13A
      • 168V: up to 12A
      • 176V: up to 11A
      • 210V: up to 9.5A
